Specifications
| SIZE | PLY RATING | LOAD RANGE | Load Speed Index | Tread Depth (32nd) | Max load Single (lbs) | Max Pressure Single (psi) | Max load Dual (lbs) | Max Pressure Dual (psi) | Rim Width (IN) | OD (in) | SW (in) | Revs / Mile | WEIGHT (LBs) |

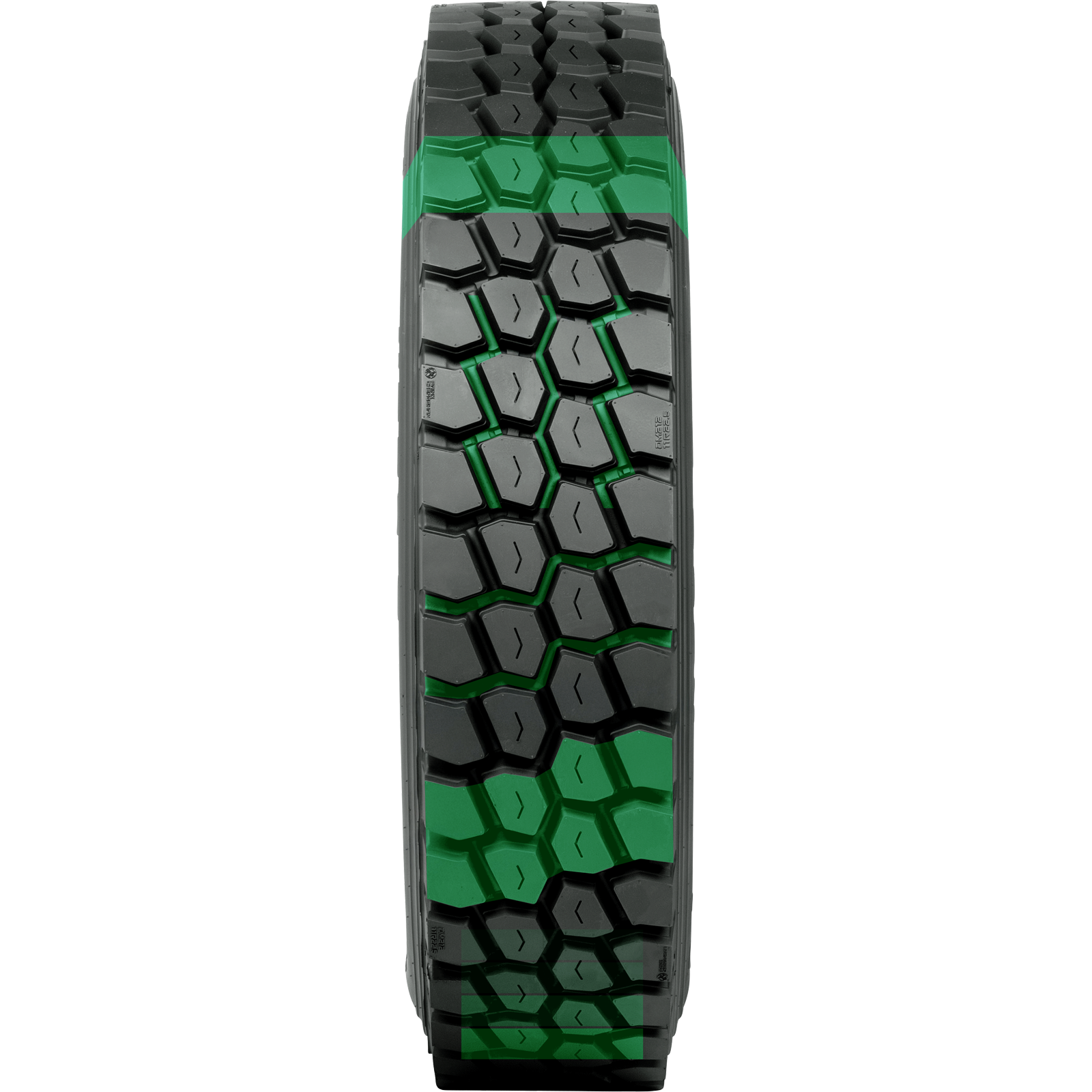

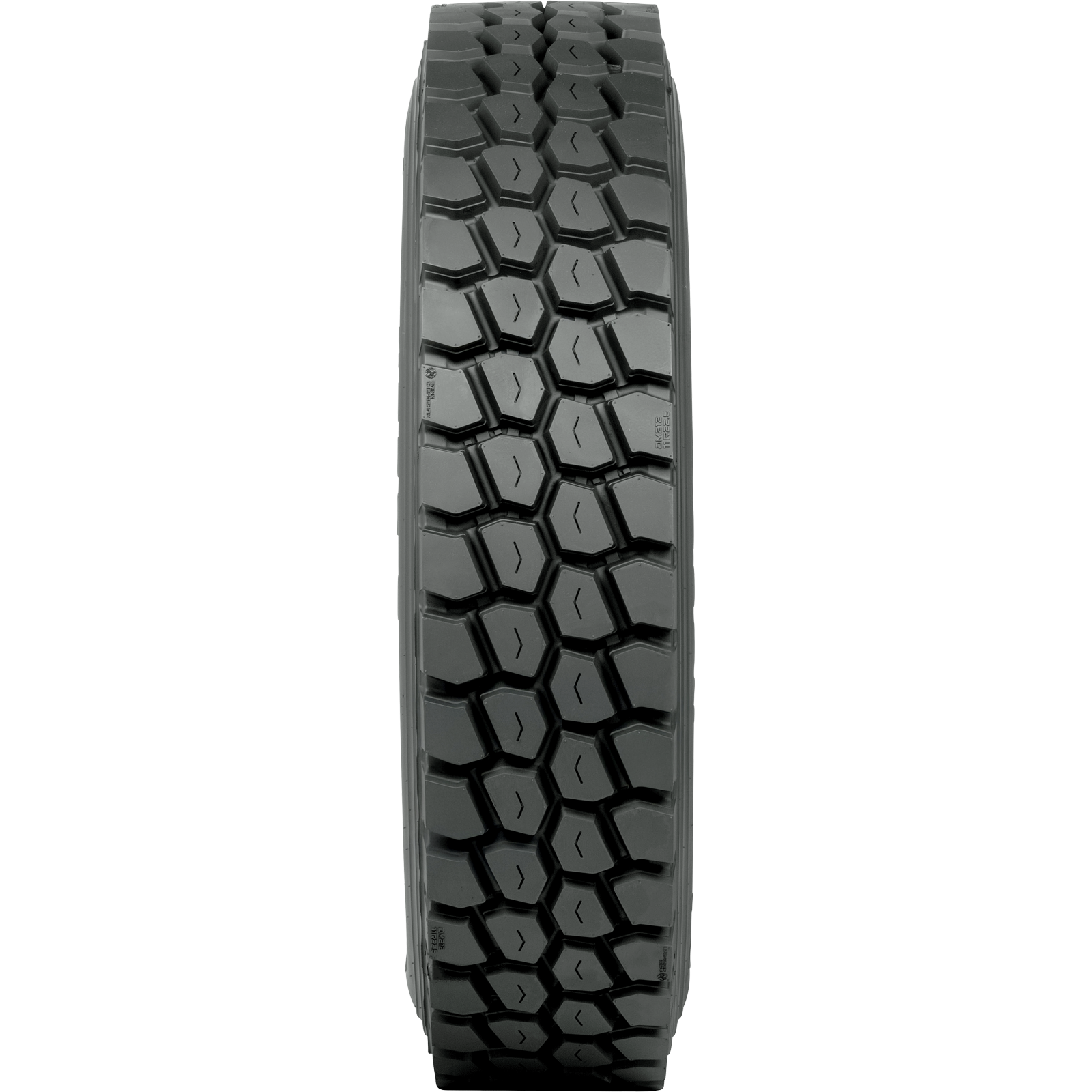

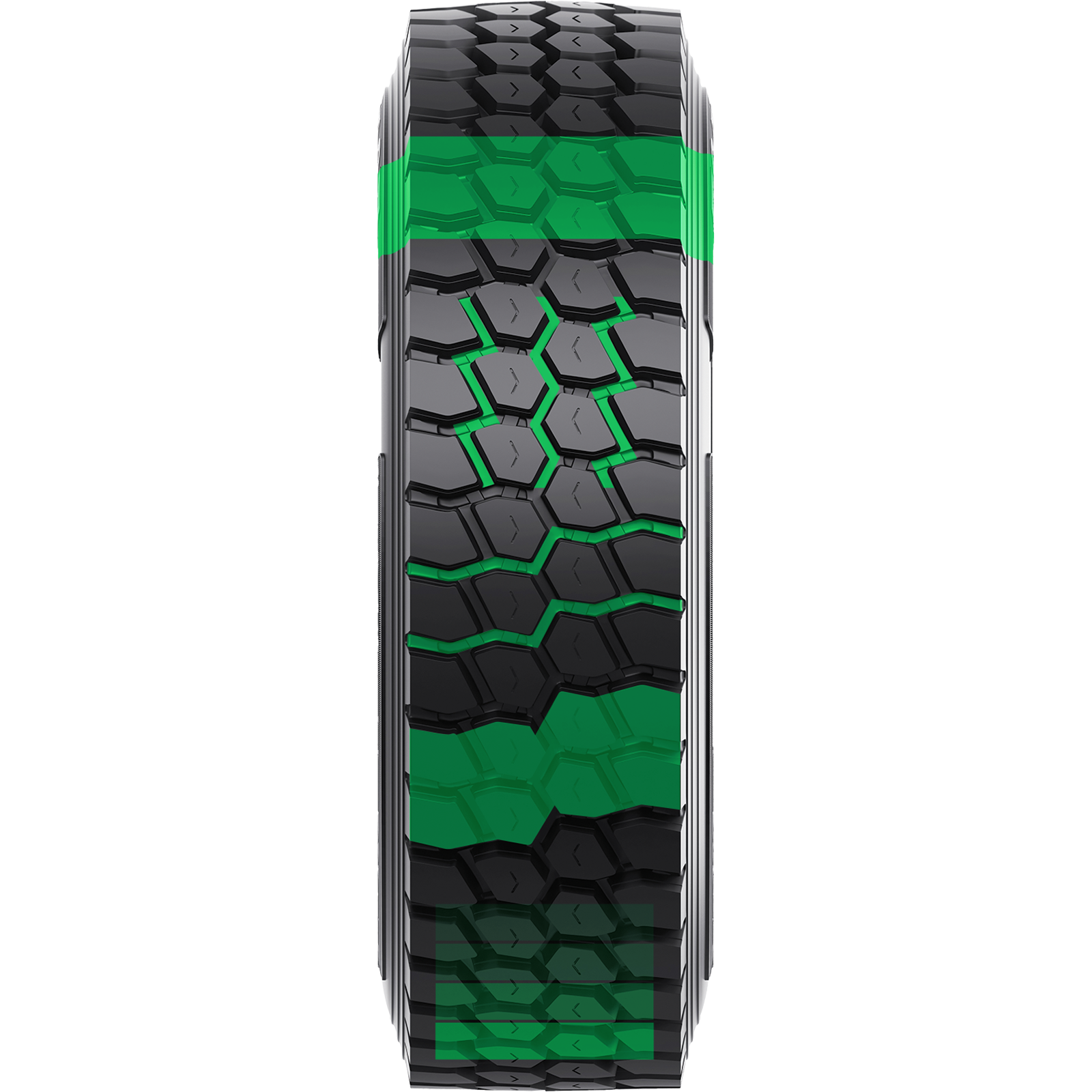

Tread construction
|
| 11R22.5 | 16PR | H | 146/143K | 30 | 6610 | 120 | 6005 | 120 | 8.25 | 41.5 | 10.7 | 482 | 123.9 | 1S+4S |
| 11R24.5 | 16PR | H | 149/146K | 30 | 7160 | 120 | 6610 | 120 | 8.25 | 43.5 | 10.7 | 464 | 133.5 | 1S+4S |
