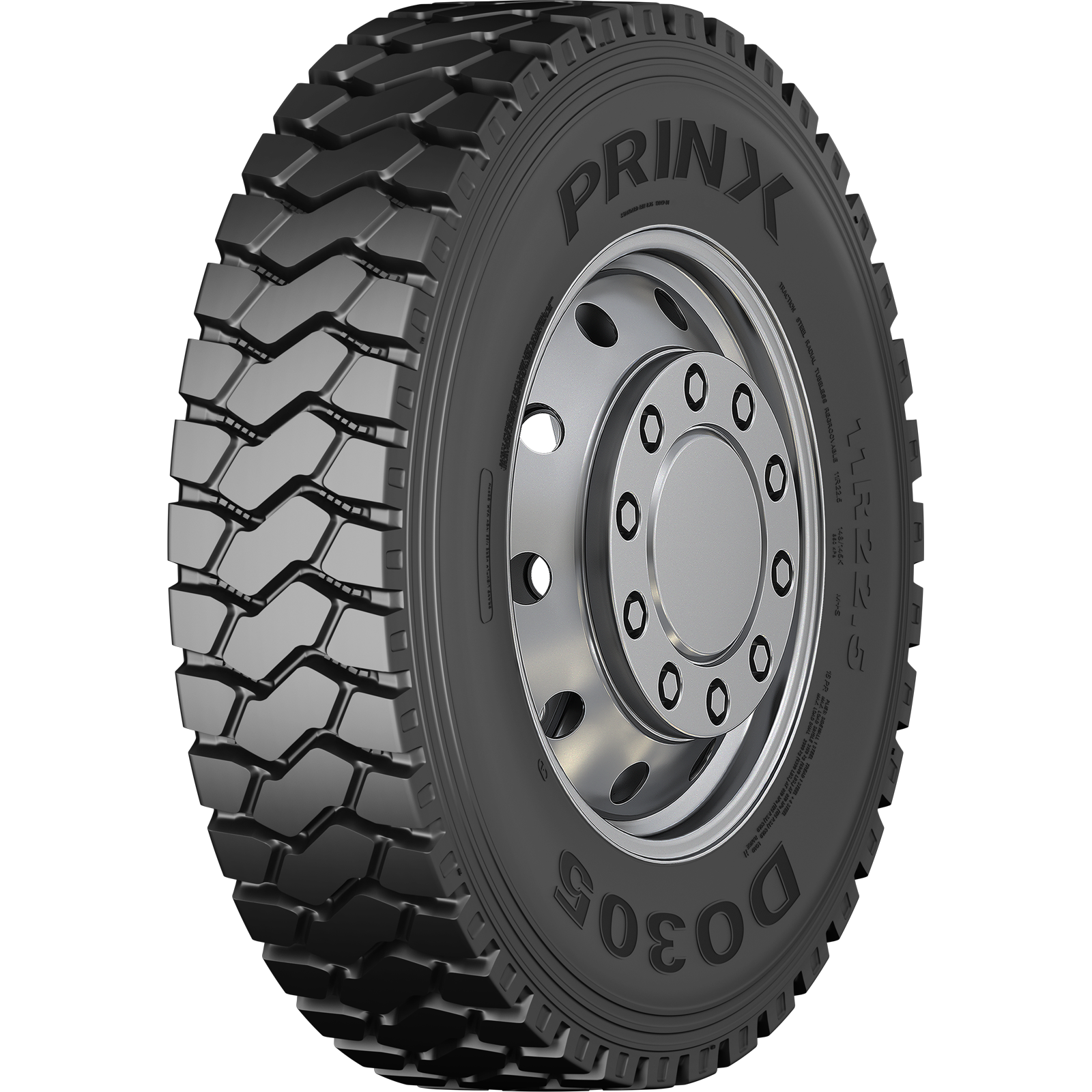

DO305 Features
Chip & Cut Resistant: A specialized compound provides superior resistance to chips and cuts while reducing heat buildup—helping extend tread life.

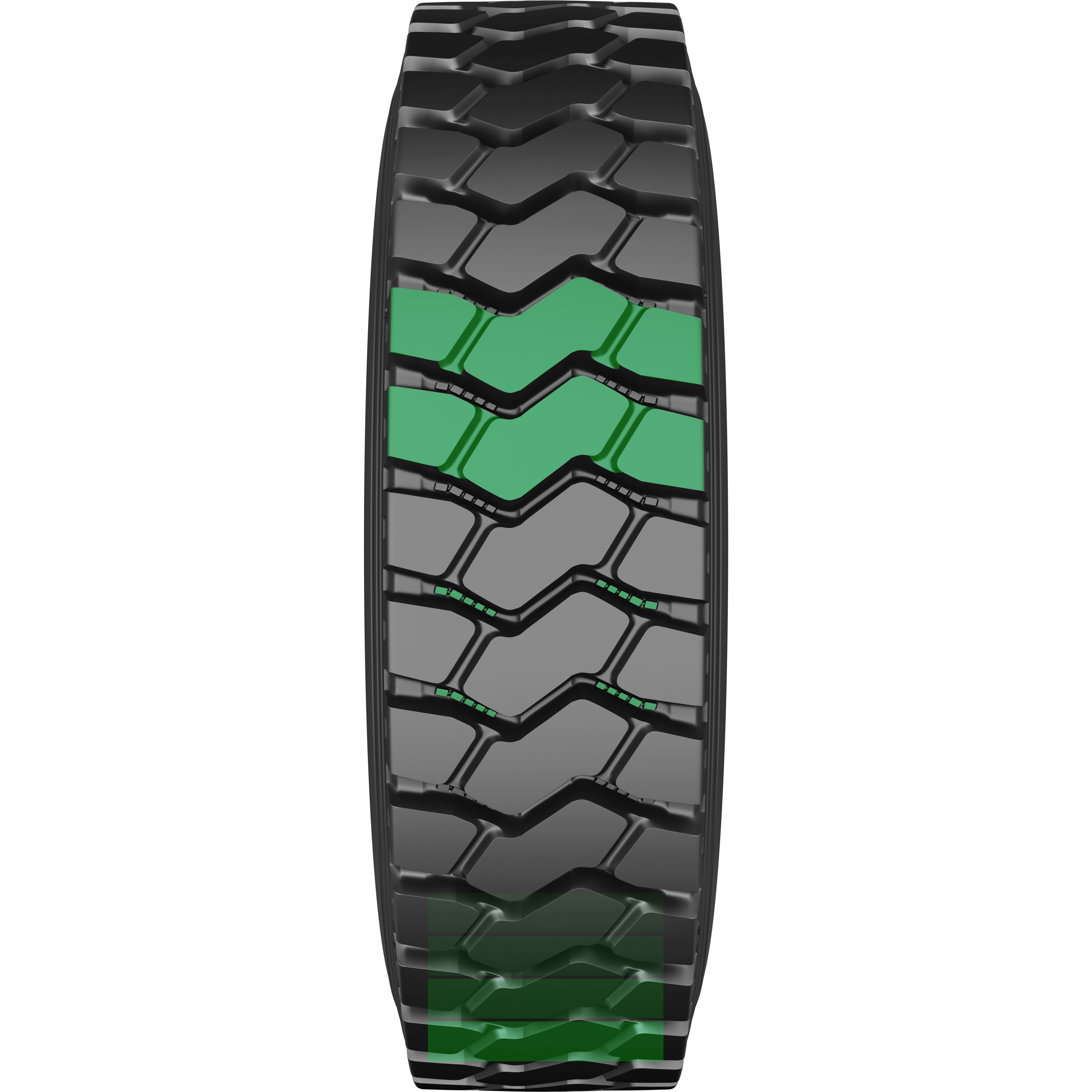

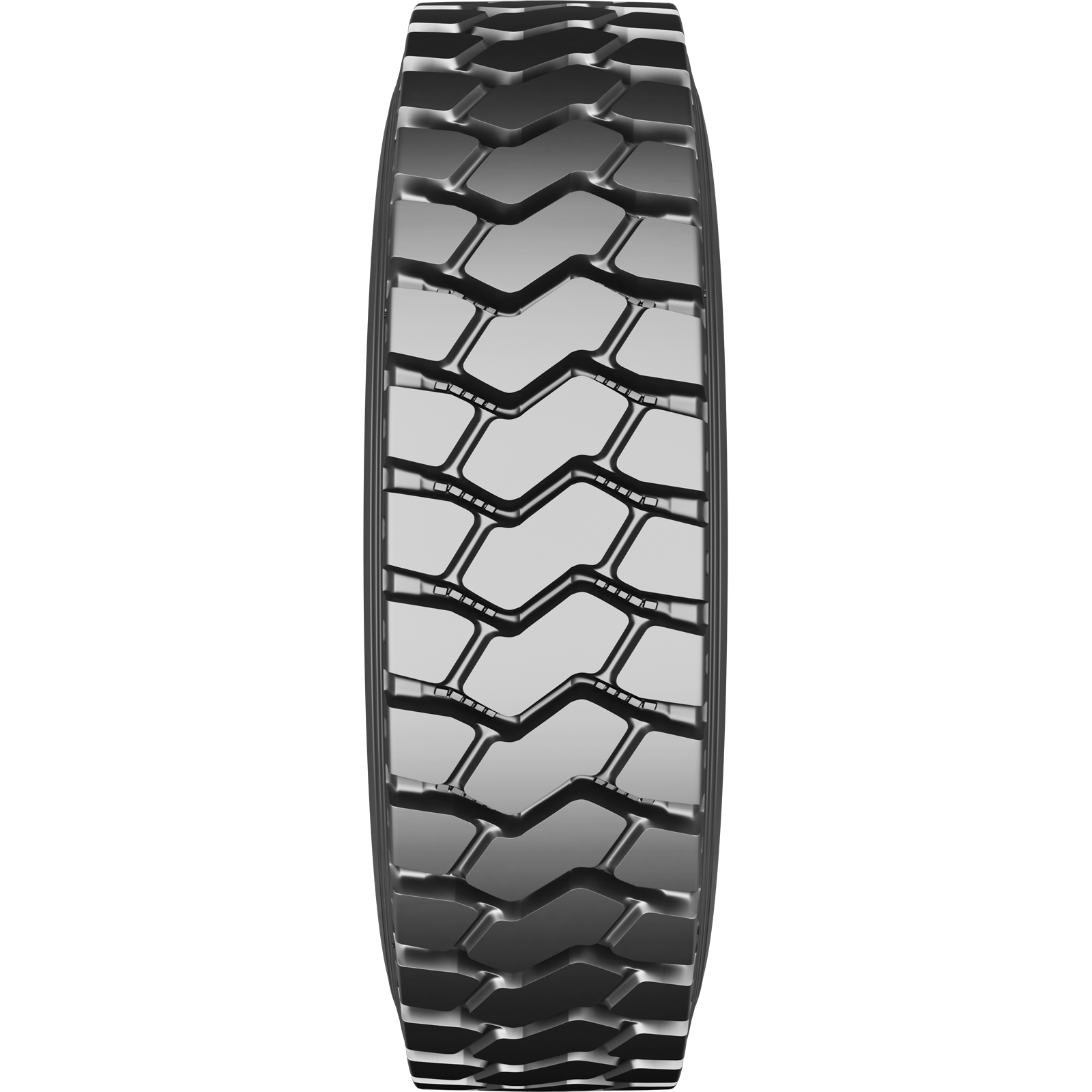

Aggressive Traction Design: Large tread blocks and deep grooves deliver strong grip and stable handling across mixed and off-road surfaces.
Stone Ejection Protection: Integrated rock ejectors help prevent stone retention, protecting the casing and enhancing long-term durability.
Reinforced Bead Construction: Engineered to handle heavy loads by reducing stress and heat, improving durability, and maximizing retreadability.
|
Tire Size
|
Ply Rating
|
Load Range
|
LI/SR Single/Dual
|
Tread Depth 32nd
|
Max Load Single lbs
|
Max Pressure Single psi
|
Max Load Dual lbs
|
Max Pressure Dual lbs
|
Approved Rim Width
|
O.D. in
|
S.W. in
|
Revs/Mile
|
Weight lbs
|
Tread Construction
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11R22.5 | 16PR | H | 148/145 | 30 | 6940 | 125 | 6390 | 125 | 7.50,8.25 | 41.5 | 11.0 | 506 | 133 | 1STEEL+4STEEL |
| 11R24.5 | 16PR | H | 149/146 | 30 | 7160 | 120 | 6610 | 120 | 7.50,8.25 | 43.5 | 11.0 | 481 | 141 | 1STEEL+4STEEL |
All specifications subject to change.
