PDM1 Features

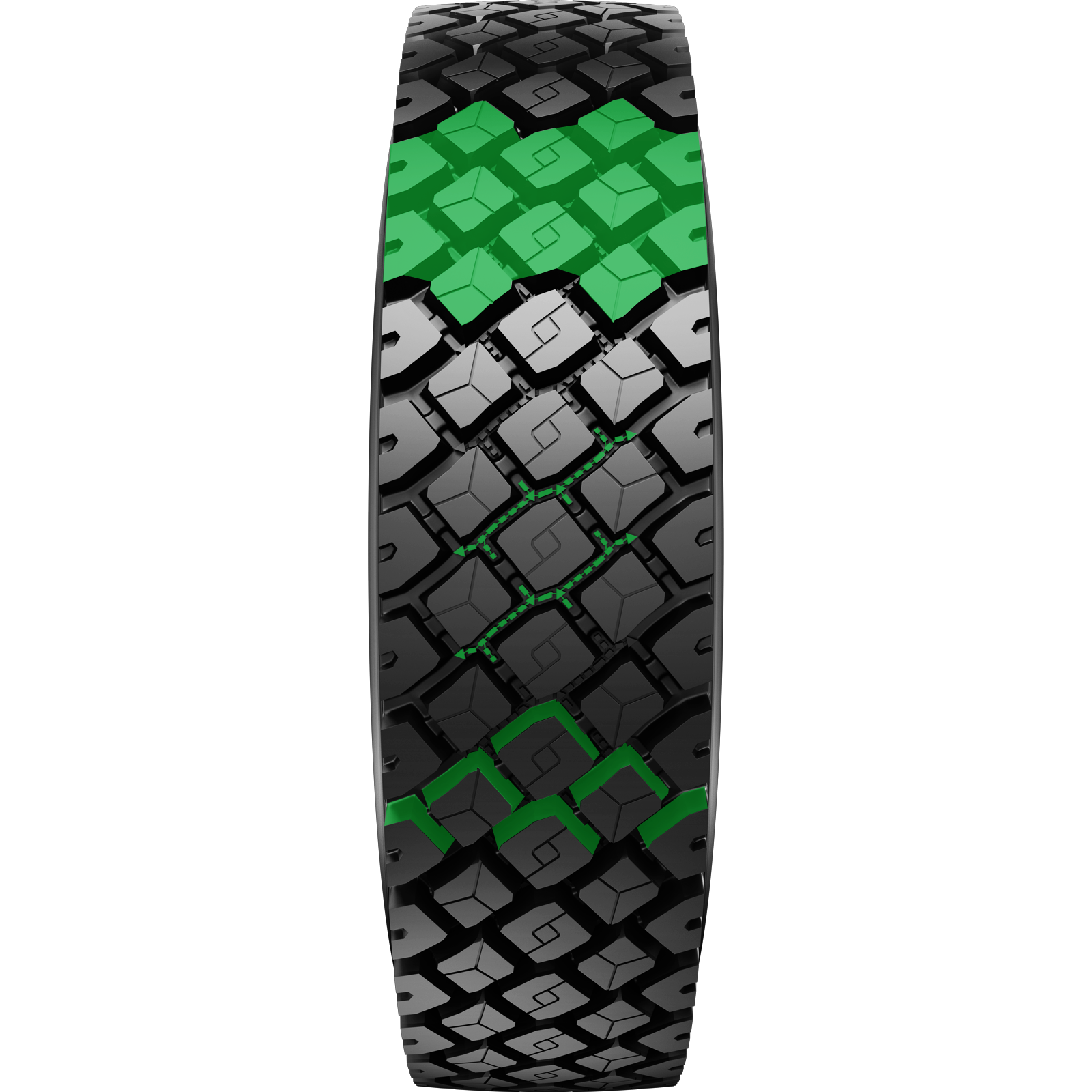

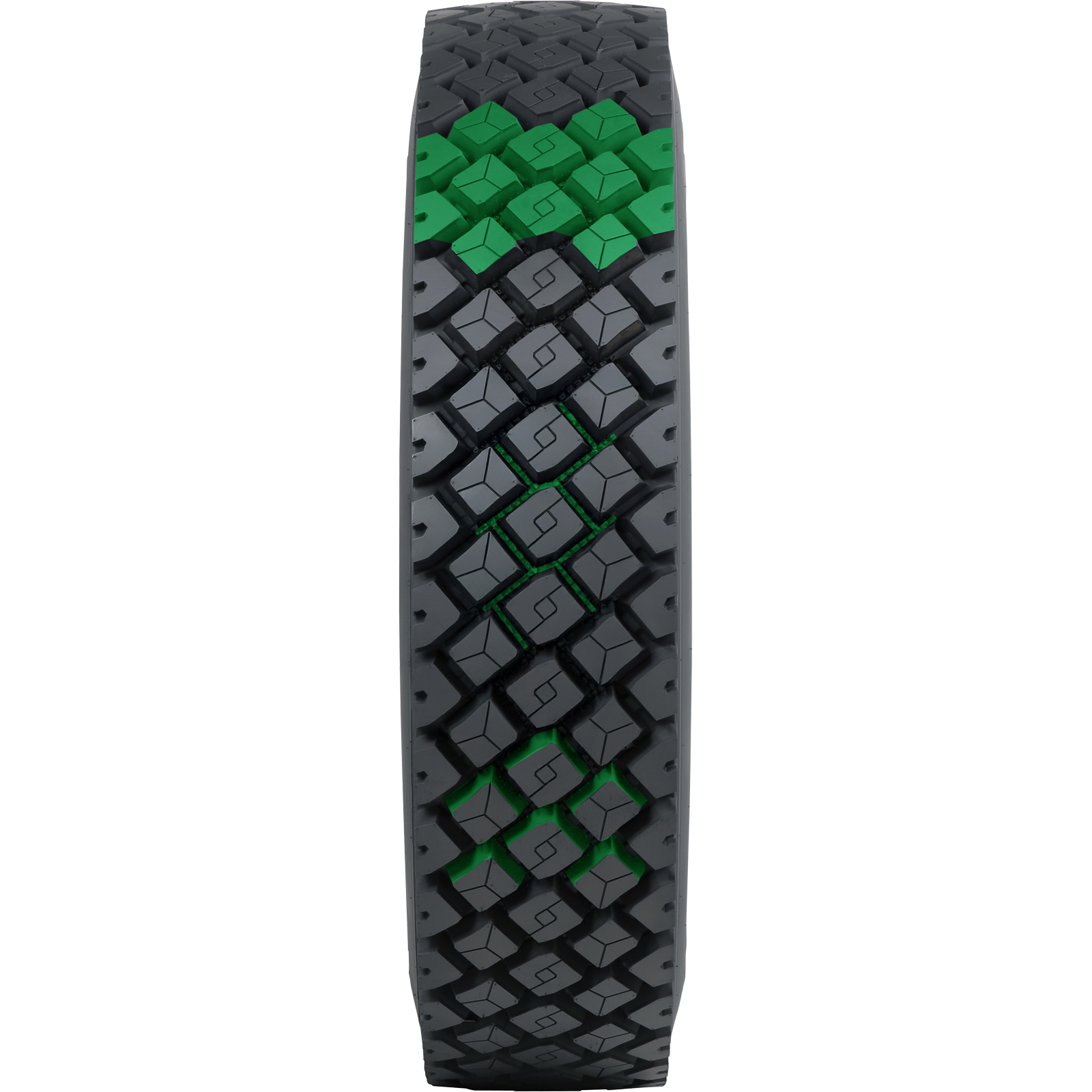

Optimized Tread Design: Offers even wear distribution, without sacrificing grip and stability
Stone Drilling Protection: Stone ejector grooves effectively prevent stone drilling–preserving casing integrity and ensuring maximum retreadability
Superior Durability: 33/32nd tread depth extends tire life and reduces frequency of replacements
Additional Features
- Chip & Cut Resistant: Special compound yields longer tire life and resistance to scrapes, chips, and cuts
|
Tire Size
|
Ply Rating
|
Load Range
|
Load Speed Index
|
Tread Depth 32nd
|
Max Load Single lbs
|
Max Pressure Single psi
|
Max Load Dual lbs
|
Max Pressure Dual lbs
|
Approved Rim Width
|
O.D. in
|
S.W. in
|
Revs/Mile
|
Weight lbs
|
Tread Construction
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11R22.5 | 16PR | H | 146/143 | 33 | 6610 | 120 | 6005 | 120 | 7.50,8.25 | 41.5 | 11.0 | 486 | 134 | 1S + 4S |
| 11R24.5 | 16PR | H | 149/146 | 33 | 7160 | 120 | 6610 | 120 | 7.50,8.25 | 43.5 | 11.0 | 464 | 142 | 1S + 4S |
All specifications subject to change.
