AM210 Features
Improved Wear Pattern: Unique 4-rib pattern streamlines tread wear
Added Traction: Zigzag design improves grip
Extended Lifespan: Advanced wear resistant compound and low void ratio improves mileage over the life of the tire
Balanced Tread: Optimized footprint for improved weight distribution
Additional Features
- Chip & Cut Resistant: Special compound yields longer tire life and resistance to scrapes, chips, and cuts
|
Tire Size
|
Ply Rating
|
Load Range
|
Load Speed Index
|
Tread Depth 32nd
|
Max Load Single lbs
|
Max Pressure Single psi
|
Max Load Dual lbs
|
Max Pressure Dual lbs
|
Approved Rim Width
|
O.D. in
|
S.W. in
|
Revs/Mile
|
Weight lbs
|
Tread Construction
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11R22.5 | 16PR | H | 146/143 | 25 | 6610 | 120 | 6005 | 120 | 7.50,8.25 | 41.5 | 11.0 | 486 | 121 | 1S + 4S |
| 11R24.5 | 16PR | H | 149/146 | 25 | 7160 | 120 | 6610 | 120 | 7.50,8.25 | 43.5 | 11.0 | 464 | 129 | 1S + 4S |
| 255/70R22.5* | 16PR | H | 140/137 | 23 | 5510 | 120 | 5070 | 120 | 7.50,8.25 | 36.6 | 10.0 | 551 | 94 | 1S + 4S |
| 275/70R22.5 | 18PR | J | 148/145 | 24 | 6940 | 130 | 6395 | 130 | 8.25,9.00 | 37.7 | 10.9 | 535 | 111 | 1S + 4S |
| 315/80R22.5* | 20PR | L | 161/157 | 24.6 | 10000 | 130 | 8270 | 130 | 9.00,9.75 | 42.4 | 12.3 | 476 | 146 | 1S + 4S |
| 315/80R22.5*^ | 20PR | L | 161/157 | 22.9 | 10200 | 130 | 9090 | 130 | 9.00,9.75 | 42.4 | 12.3 | 476 | 149 | 1S + 4S |

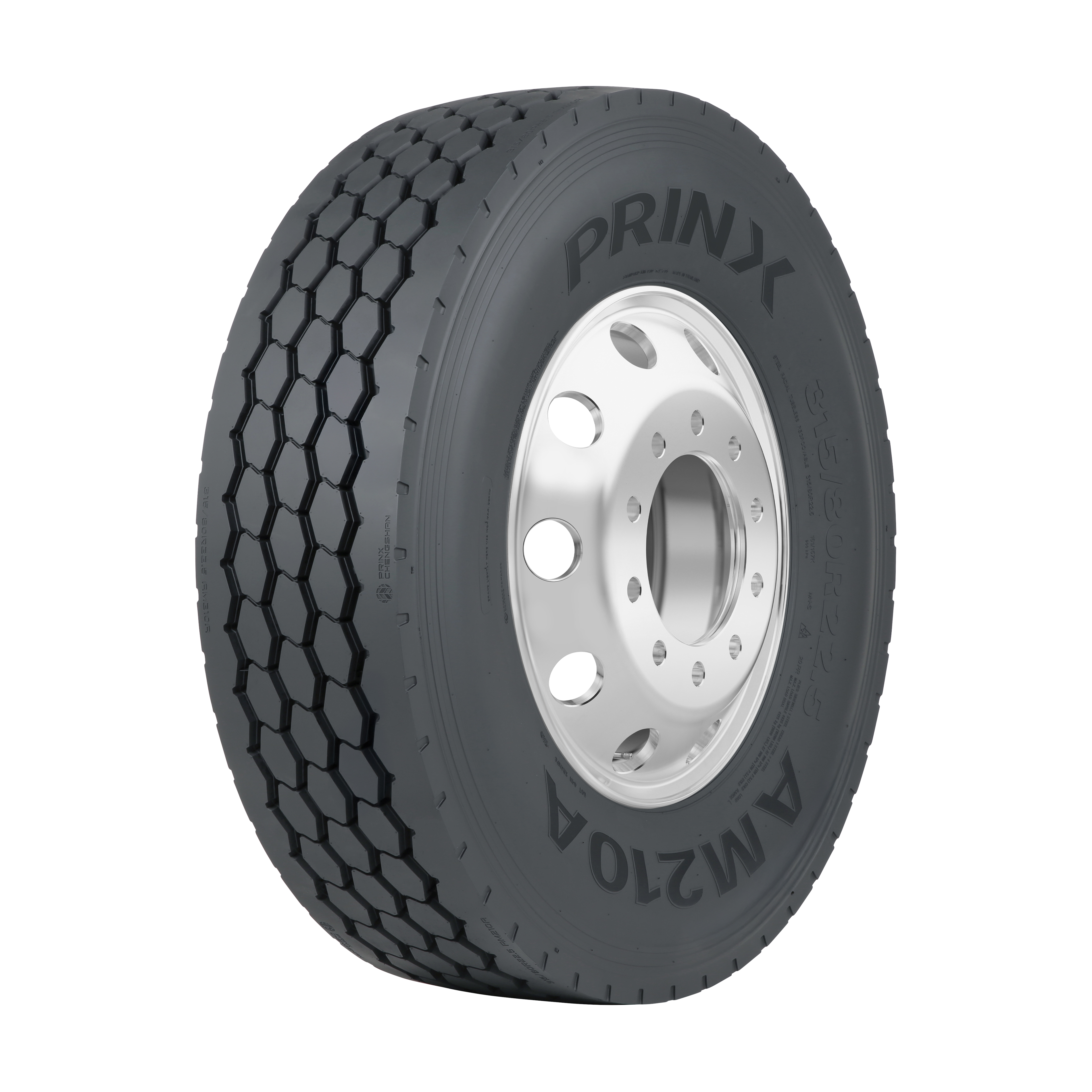

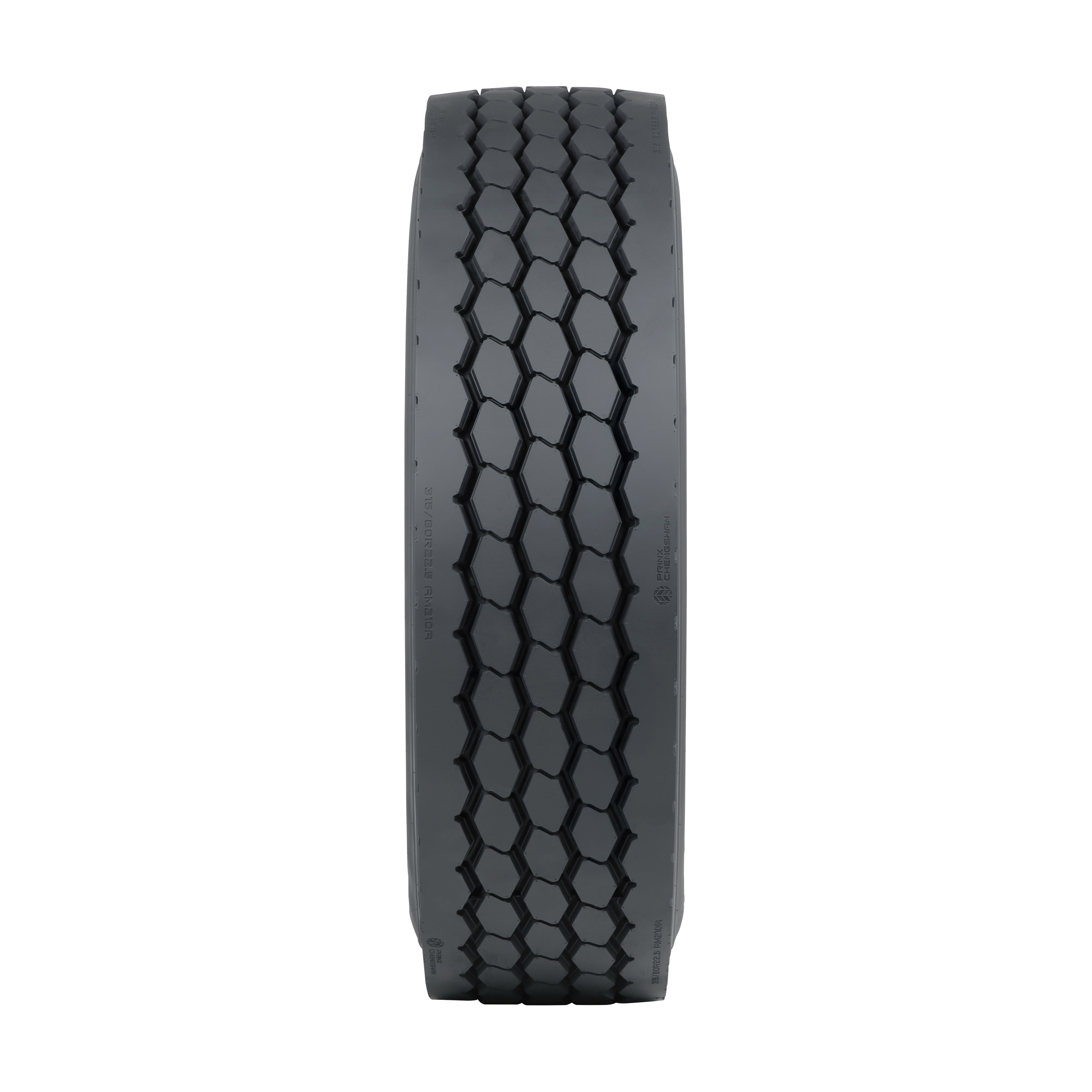

*M+S rated size ^AM210-A, 5-rib design (new for 2025) All specifications subject to change.
