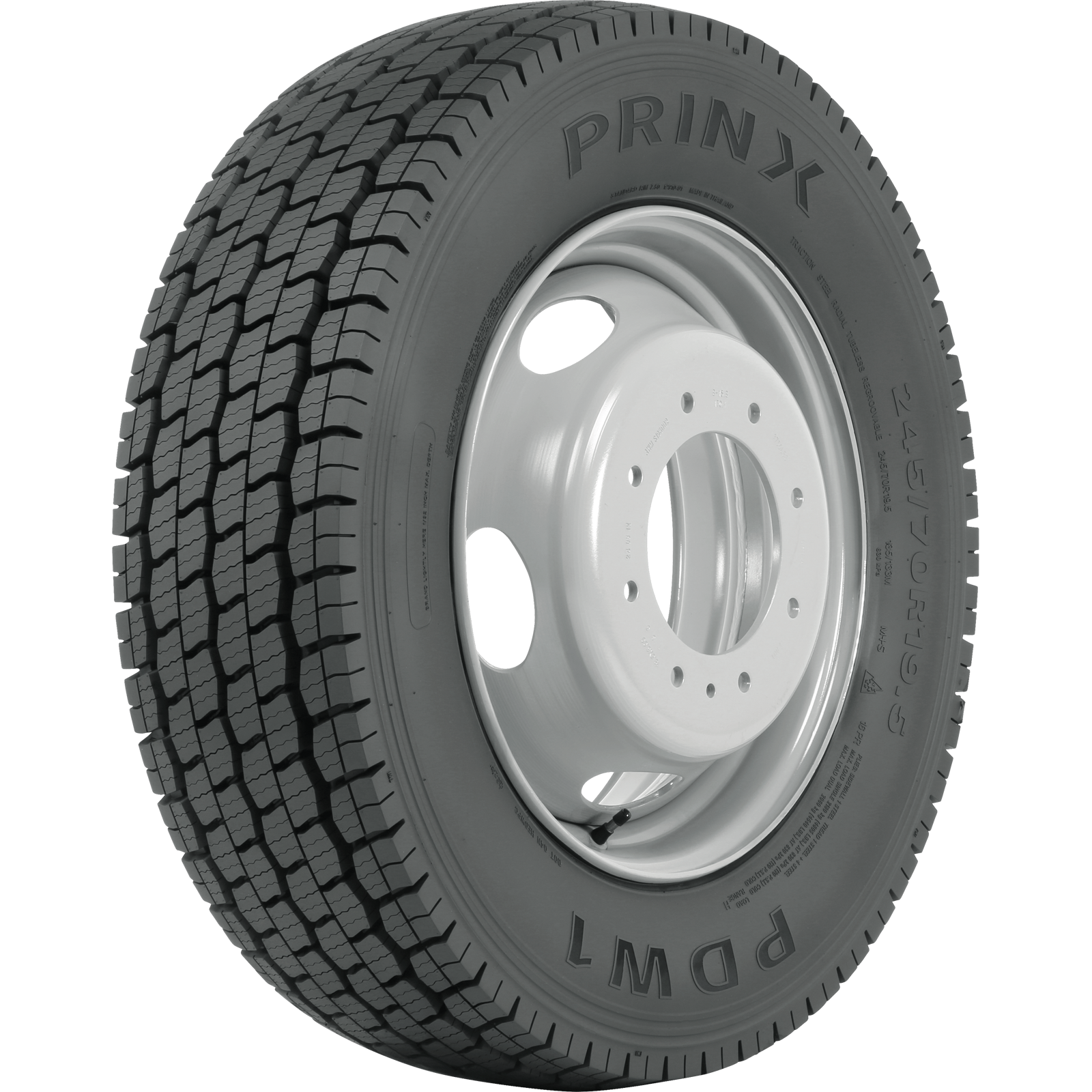

PDW1 Features

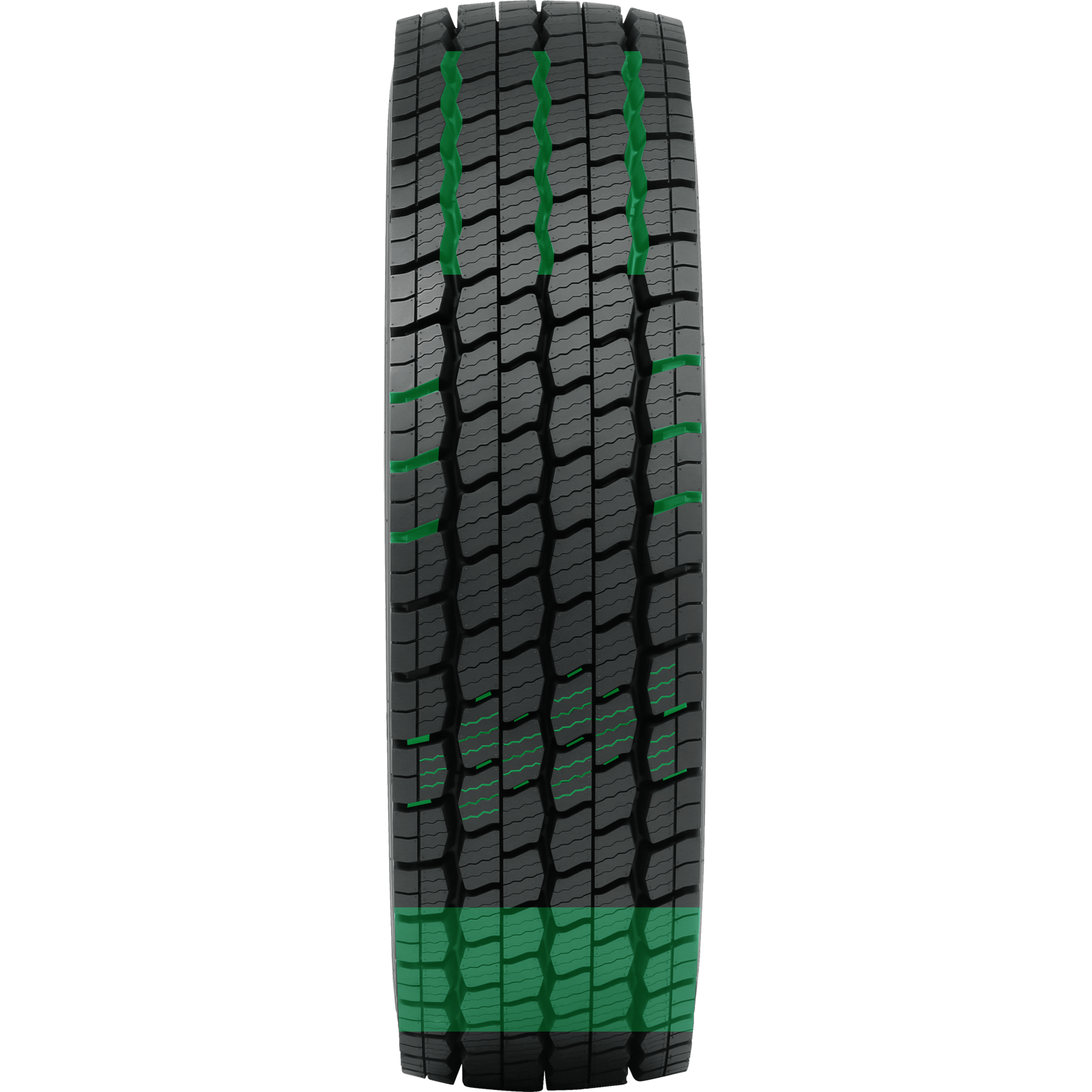

Exceptional Ice & Snow Traction: Three main zigzag grooves and two auxiliary grooves ensure tread stiffness and handling
Exceptional Wear Pattern: Tie-bar linked tread blocks prevent irregular wear when tires are newer and enhanced, full-depth, 3D siping helps maintain grip as tires age
Superior Snow Removal: Open shoulder groove design increases the snow removal and anti-sideslip capability of the tire
Optimized Footprint: Engineered shoulder block ratio and tread design, combined with high tension steel belts, reduce tread deformation in the footprint leading to better traction
Additional Features
- Special Winter Tread Compound: Unique mixture provides enhanced ice and snow performance
|
Tire Size
|
Ply Rating
|
Load Range
|
Load Speed Index
|
Tread Depth 32nd
|
Max Load Single lbs
|
Max Pressure Single psi
|
Max Load Dual lbs
|
Max Pressure Dual lbs
|
Approved Rim Width
|
O.D. in
|
S.W. in
|
Revs/Mile
|
Weight lbs
|
Tread Construction
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11R22.5 | 16PR | H | 146/143 | 28 | 6610 | 120 | 6005 | 120 | 7.50,8.25 | 41.5 | 11.0 | 486 | 130 | 1S + 4S |
| 11R24.5 | 16PR | H | 149/146 | 28 | 7160 | 120 | 6610 | 120 | 7.50,8.25 | 43.5 | 11.0 | 464 | 140 | 1S + 4S |
| 225/70R19.5^ | 14PR | G | 128/126 | 22 | 3965 | 110 | 3745 | 110 | 6.00,6.75 | 31.9 | 8.9 | 632 | 65 | 1S + 3S |
| 245/70R19.5* | 16PR | H | 135/133N | 22 | 4805 | 120 | 4540 | 120 | 6.75,7.50 | 33.3 | 9.8 | 611 | 83 | 1S + 4S |
*SmartWay® verified ^3-belt construction All specifications subject to change.
