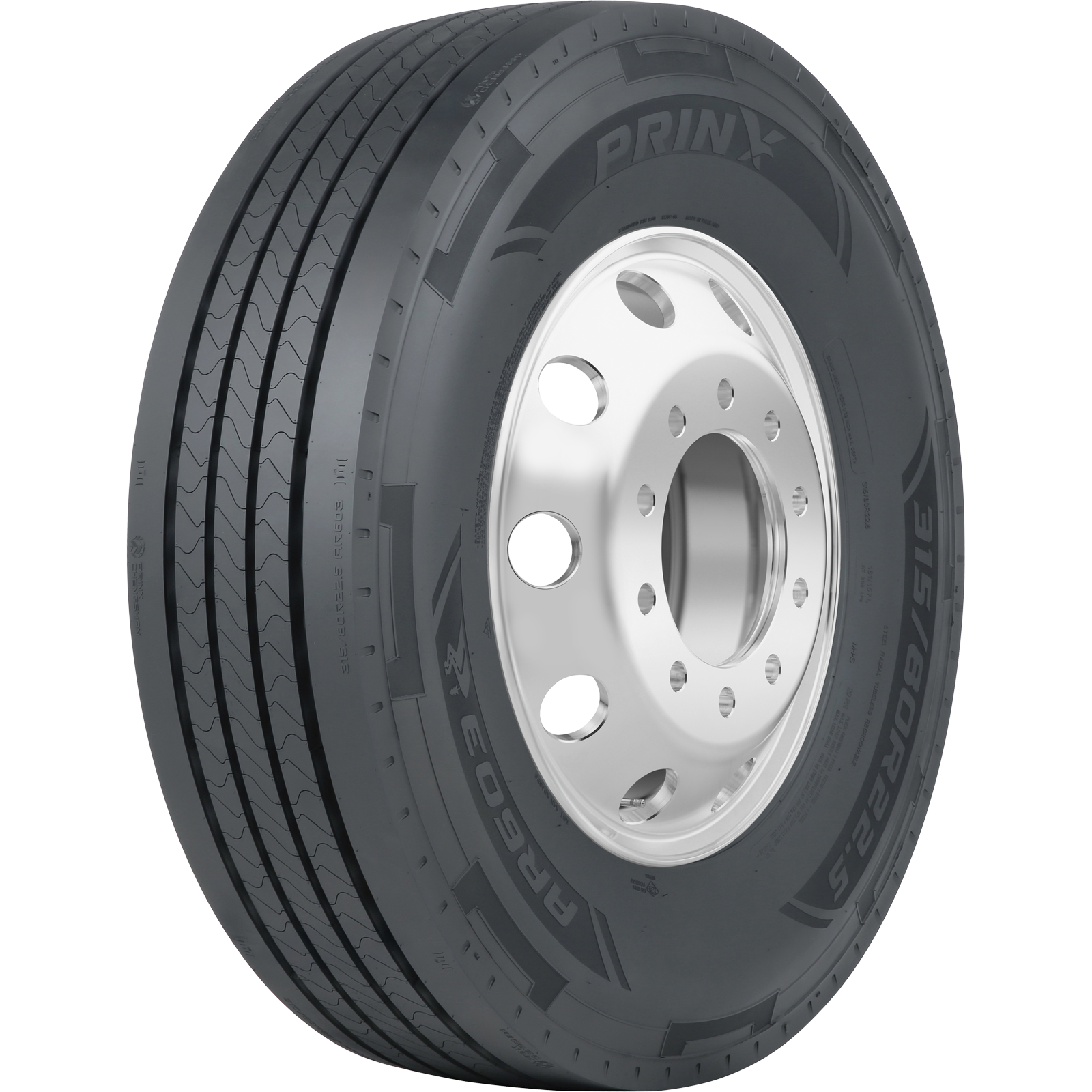

AR603 Features

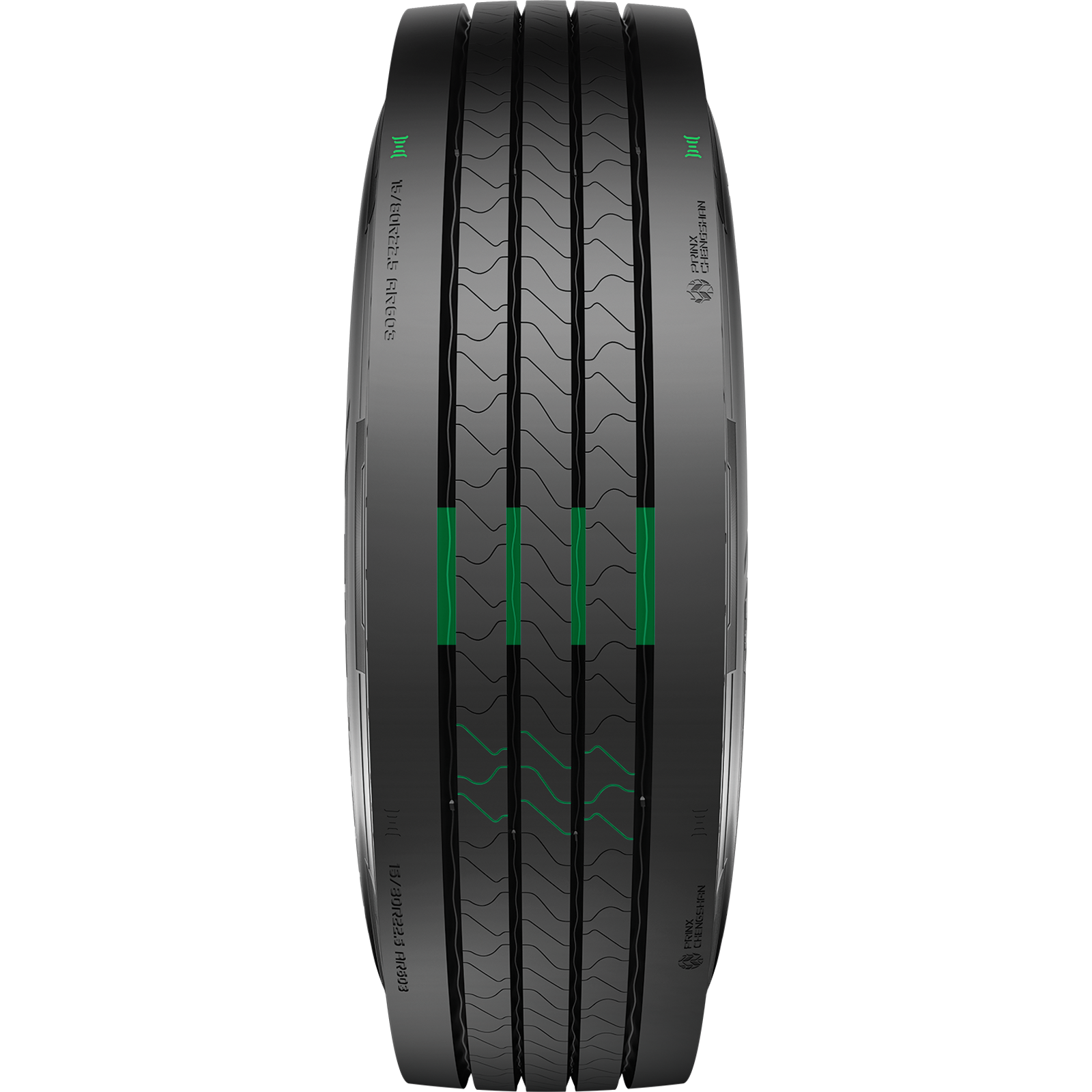

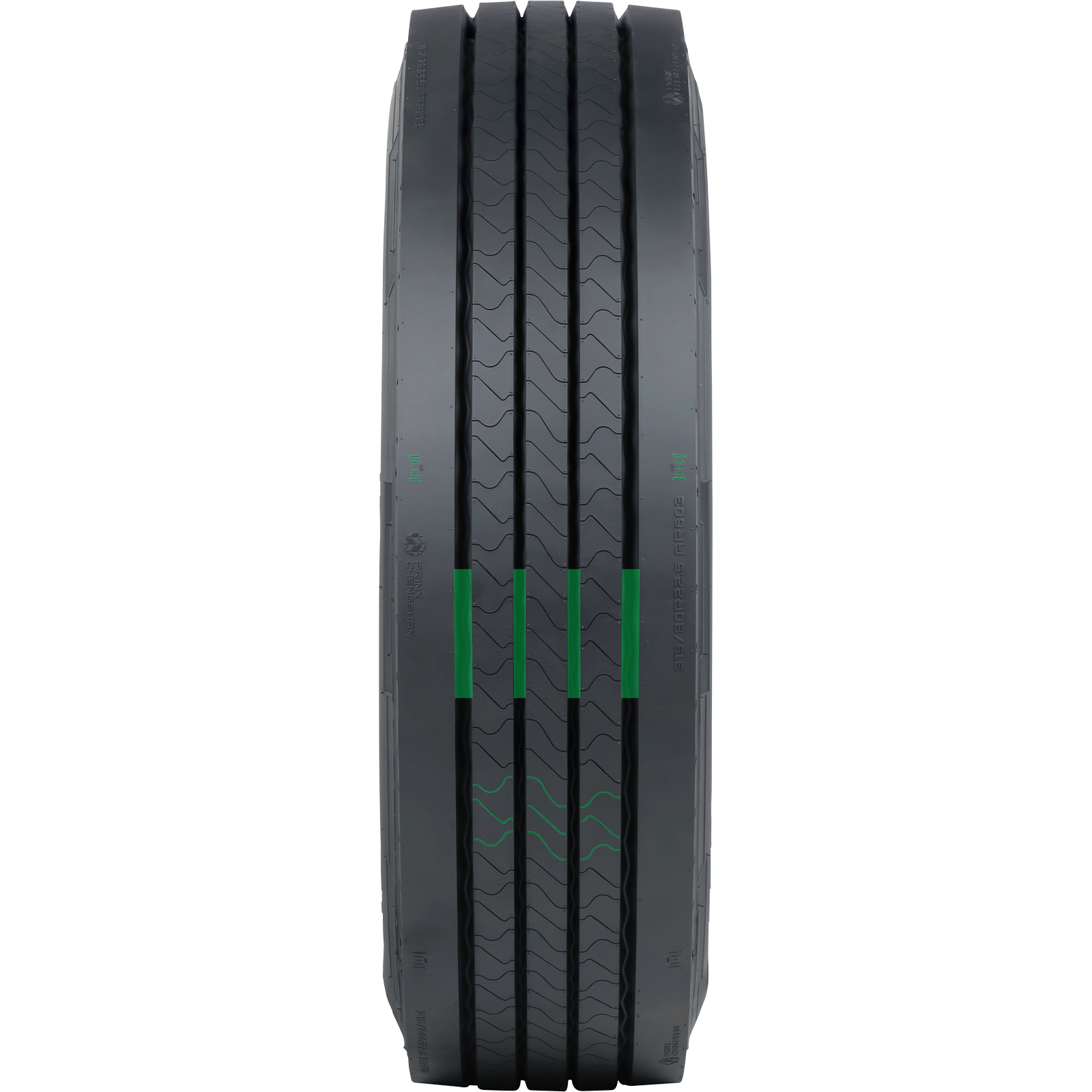

Alignment-Friendly: Markings located on the solid shoulders readily identify any vehicle alignment issues
Exceptional Wear Pattern: Multi-angle grooves contribute to tread rigidity—and combined with optimized rib widths, provide a more uniform wear pattern
Superior Traction: Specialized siping improves grip with a consistent, regular footprint
Additional Features
- Performance Rated: This tire is 3PMS certified and L-speed rated up to 75 MPH
|
Tire Size
|
Ply Rating
|
Load Range
|
Load Speed Index
|
Tread Depth 32nd
|
Max Load Single lbs
|
Max Pressure Single psi
|
Max Load Dual lbs
|
Max Pressure Dual lbs
|
Approved Rim Width
|
O.D. in
|
S.W. in
|
Revs/Mile
|
Weight lbs
|
Tread Construction
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 315/80R22.5 | 20PR | L | 161/157 | 21 | 10000 | 130 | 9090 | 130 | 9.00,9.75 | 42.4 | 12.3 | 476 | 145 | 1S + 4S |
All specifications subject to change.
